Sensor Shield for microbit GPIO Breakout, Servo and Motor Driver Expansion Board for micro:bit v1/v2 Robotics/Smart Home Projects with I2C/PWM/Motor Ports, IR Receiver and LEDs
19.99$

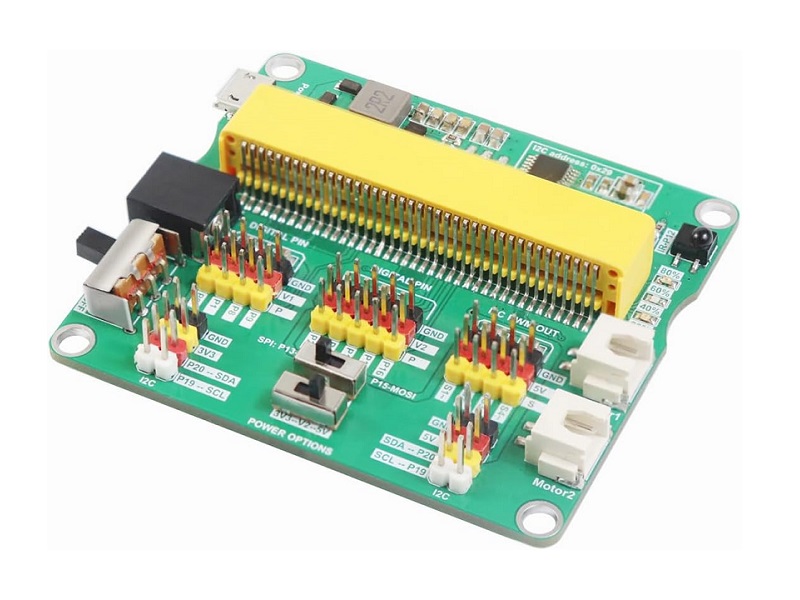

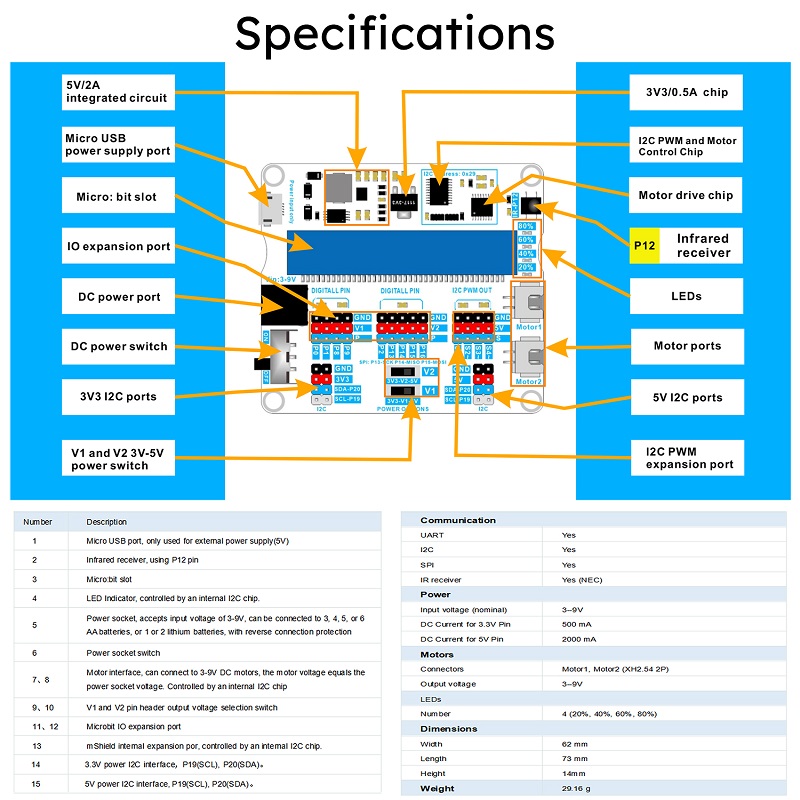

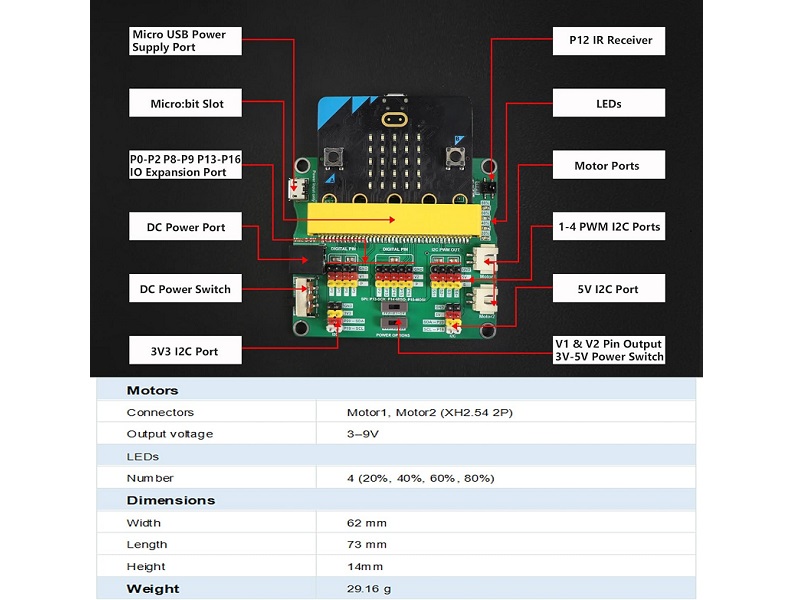

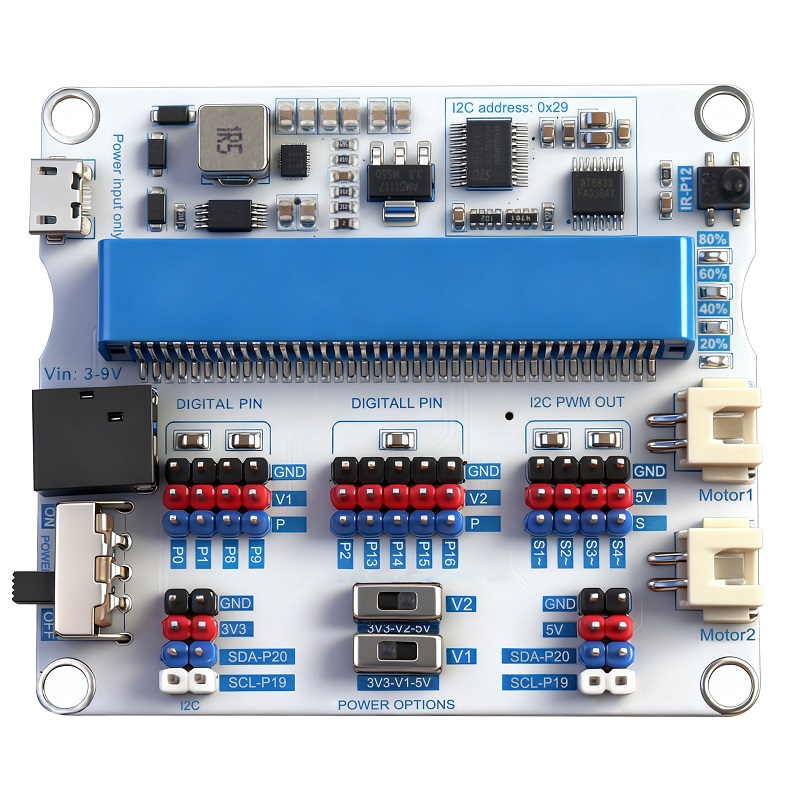

Specification parameter
| Shield | |
| Name | mShield expansion board for micro:bit |
| SKU | M1E0002 |
| USB connector | Applicable motherboard |
| Micro USB | micro:bit |
| Pins | |
| Digital I/O Pins | 9 (P0, P1, P2, P8, P9, P13, P14, P15, P16) |
| Analog read pins | 3 (P0, P1, P2) |
| Analog write pins | 9 (P0, P1, P2, P8, P9, P13, P14, P15, P16) |
| PWM pins | 4 (S1~, S2~, S3~, S4~), period: 2ms. |
| Servo pins | 4 (S1~, S2~, S3~, S4~) |
| Communication | |
| UART | Yes |
| I2C | Yes |
| SPI | Yes |
| IR receiver | Yes (NEC) |
| Power | |
| Input voltage (nominal) | 3–9V |
| DC Current for 3.3V Pin | 500 mA |
| DC Current for 5V Pin | 2000 mA |
| Motors | |
| Connectors | Motor1, Motor2 (XH2.54 2P) |
| Output voltage | 3–9V |
| LEDs | |
| Number | 4 (20%, 40%, 60%, 80%) |
| Dimensions | |
| Width | 62 mm |
| Length | 73 mm |
| Height | 14mm |
| Weight | 29.16 g |
Packaging size: 8.8 x 8.8 x 1.8 cm
Product weight: 51g

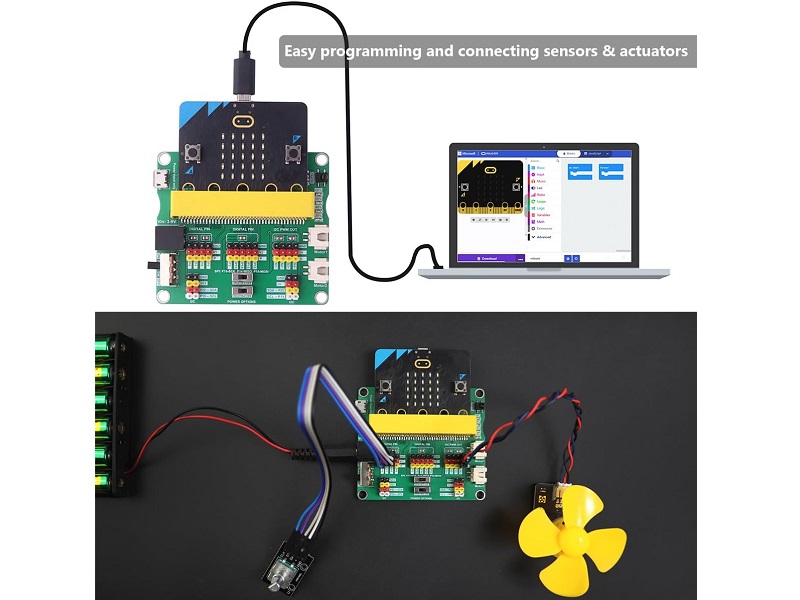

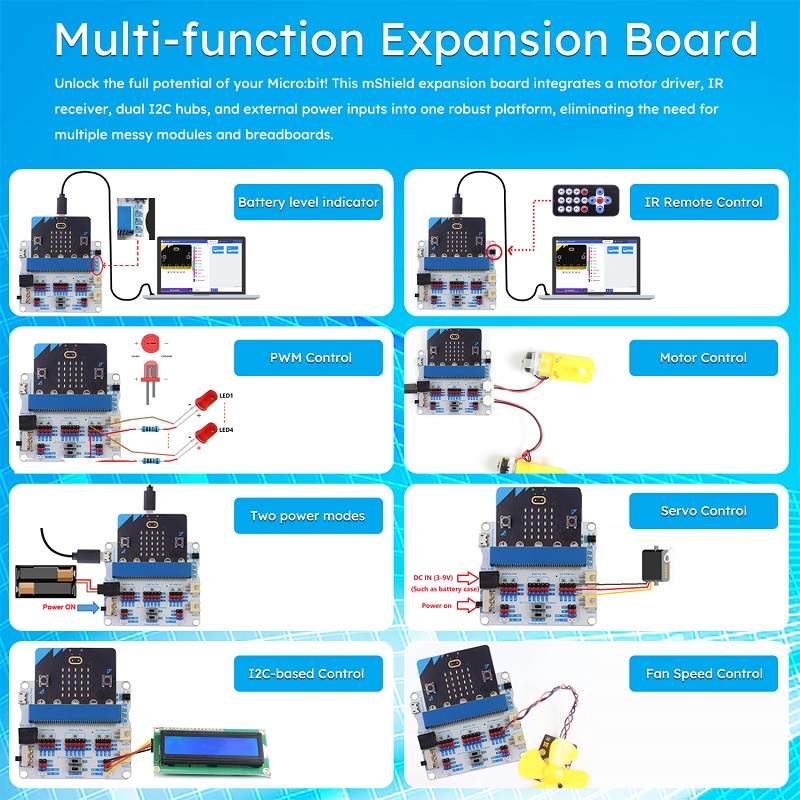

Tutorial: click me
